The Security Code number on these radios are determined via a series of soldered links (Called a Pad Code) on the bottom of the main circuit board. These pads can be seen through a small hole in the base of the radio which is covered by the label. if you have managed to remove the radio from the dashboard, then the hard work has already been done!!

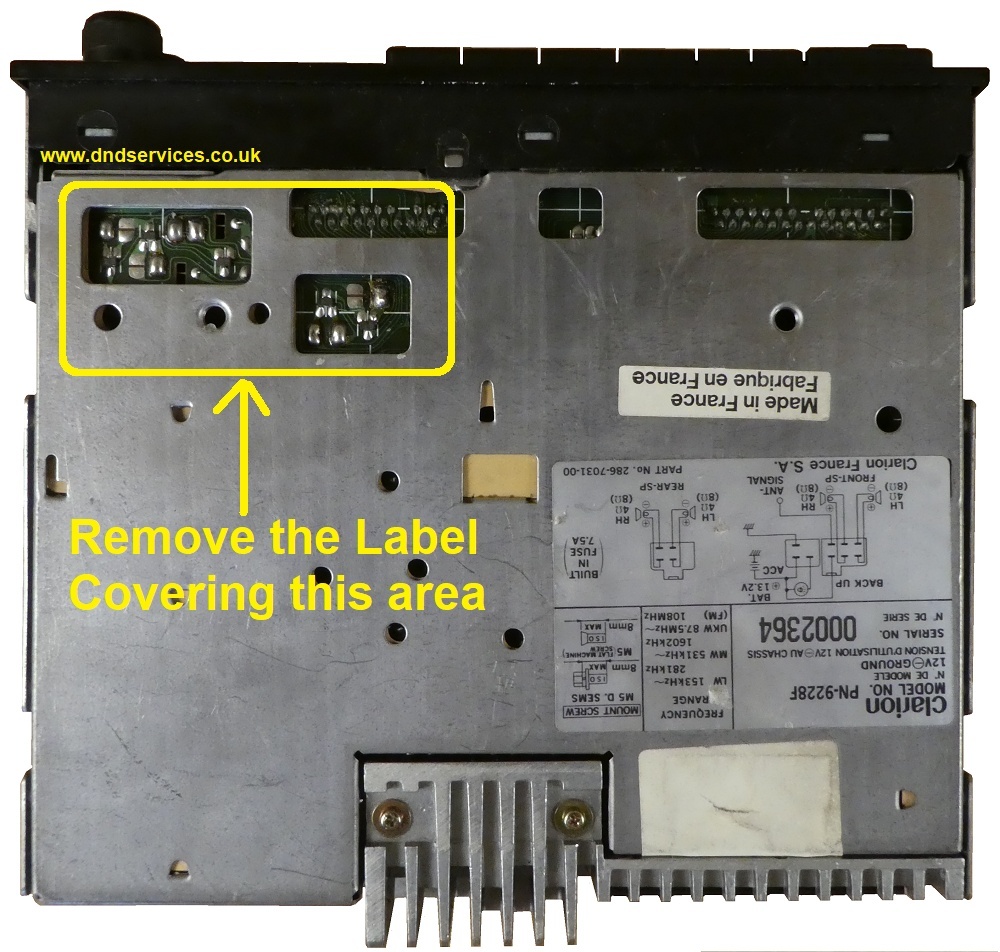

Start by turning the radio upside down, with the fascia away from you, and you will see the large protective label along the front edge. Run your fingers across this label and you should feel a large rectangular slot which we need to open up by gently removing the part of the label that covers this. You should now see the green circuit board inside.

For orientation, the fascia should be away from you, and you are now looking to identify a set of ten solder pads across two different holes as shown on the picture.

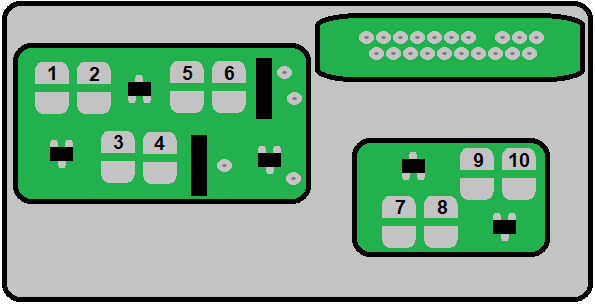

The ten solder pads are made up of an upper and a lower section, and will look roughly like this shown below. Some will have a blob of solder linking the upper and lower pads, and its these blobs and their locations that we need to identify as a pad code.

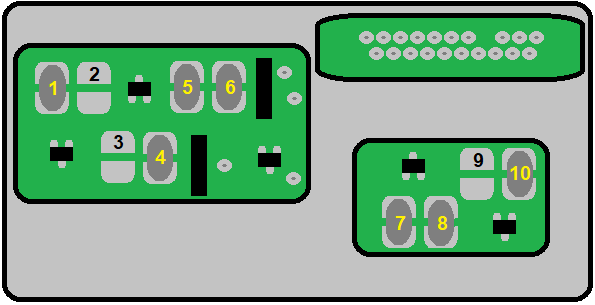

If you assume an open, unsoldered pad to be a 'Zero 0' and a blob, or soldered pad to be a 'One 1', then with the fascia away from you, and reading the pads from left to right, you will end up with a ten digit pad code made up of 0`s and 1`s. For instance this series of links below would give a pad code of 1001111101

And this is what that would look like on the radio

By now you should be able to work out your own ten digit pad code from your own series of links. If you now enter this information below by clicking on the boxes where you have a soldered link, and submit it to us with a payment, we can then instantly calculate your security code and display it here without any further delay.

Please be aware that if you have previously entered an incorrect number, or if your radio is switched on you see four numbers on the screen, and no matter what you press they still keep showing, then the stereo may be Codelocked. If this is the case, then there is a little trick of the trade to get around this, but please be careful as it is also very easy to irretrievably lock the radio if the wrong buttons are then pressed afterwards.

With the unit switched on, press and hold the 'ST' button for around 10 seconds, and the display should disappear completely leaving you with a blank screen. If it does, then follow the email instructions that we send with your code number. If not, then please try leaving it switched on for 3 hours, and then try pressing the 'ST' button again. Should it not reset after this time then you may have used up all of your Code Entry attempts, and the radio will now have to be sent to us for extensive reprogramming. Further details available upon request.
